ProbitSiteThe DALI Multimeter
The professional tool for diagnosing, commissioning and documenting DALI installations.
ProbitSite is the professional measuring device for diagnosing, commissioning and documenting DALI installations. Electricians, commissioning engineers and service technicians use it to find electrical faults, communication problems and address conflicts in minutes, without changing the existing configuration.
Request a quote directly from Lichtvision, or find your local distributor.
Recommended retail price: €799 plus VAT
DALI-2 certified test device. View the DALI Alliance certification entryWhat ProbitSite Does
ProbitSite is a stand-alone, DALI-2 certified measuring device for diagnosing and commissioning DALI installations. It analyses control gear, short addresses, telegrams and the electrical signal quality directly on the DALI bus, exposing communication errors, address conflicts, wiring problems and unstable signal levels, in new and already running installations alike.
ProbitScan reads every DALI device on the bus without touching the existing configuration.
Intuitive signal quality indicator with bit-timing analysis of the physical DALI layer.
DALI data logger records telegram traffic from power-on and stores more than 30,000 DALI bus events.
Spots devices that are not DALI-2 certified by checking them against the DALI Alliance product database.
Detects wrong or duplicate addresses, wiring errors, bus short circuits and unresponsive devices.
Stand-alone Configuration: Set, change, and delete DALI short addresses directly from the handheld device (Expert Mode).
Built-in DALI bus power supply (190–250 mA) with ProbitConnect: automatic activation on demand.
The only DALI-2 certified test device on the market. View certification on dali-alliance.org
"It is a fantastic tool and really helped us identify the issues we were having. I'm looking forward to using mine in the future!"
Why the physical DALI layer is decisive
DALI faults do not only originate in the logical protocol. Voltage levels, signal edges, timing, wiring and bus load all influence communication. ProbitSite therefore analyses both the logical communication and the physical quality of the DALI signal.
ProbitSite measures more than logical DALI telegrams: it evaluates signal quality and bit timing on the physical layer. This reveals electrical problems that can stay undetected in a purely logical protocol analysis. The integrated DALI bus power supply allows diagnosis and commissioning even when no controller or external bus power supply is installed yet.
ProbitConnect: built-in DALI bus power supply (190–250 mA) with automatic activation on demand. It detects automatically whether the line already has a bus power supply and holds back if one is present, so there is no double supply. When no DALI bus voltage is present, it switches its own supply on automatically. This makes ProbitSite usable both in installations that already have a supply and before a controller is installed.
ProbitSite compared to a USB DALI dongle
Many simple USB DALI interfaces focus on addressing and logical communication. ProbitSite additionally analyses the electrical and physical quality of the DALI signal.
Comparison
Typical USB DALI dongle
- Operation without a laptop: Usually needs a PC or laptop running dedicated software.
- Integrated DALI bus power supply: Mostly without its own bus power supply.
- Logical protocol analysis: Available, focused on addressing and communication.
- Physical signal analysis: Usually not available.
- Signal quality measurement: A clean bus cannot be told apart from a marginal one.
- Bit timing analysis: Slow or out-of-spec replies stay invisible.
- DALI-2 certification: Usually not DALI-2 certified.
- Data logging: Only while the PC software is running.
- Short address management: Through PC software.
- Test reports: Depends on the respective manufacturer software.
- Investigating existing installations: Risk of overwriting addresses or settings.
Comparison
ProbitSite
- Operation without a laptop: Stand-alone handheld, ready to use directly on the DALI bus.
- Integrated DALI bus power supply: Integrated DALI bus power supply (190–250 mA) with ProbitConnect.
- Logical protocol analysis: Analysis of DALI telegram traffic and device replies.
- Physical signal analysis: Physical and logical layer.
- Signal quality measurement: Intuitive signal quality indicator with precise reply timing analysis.
- Bit timing analysis: Finds hardware defects, wiring faults and overloaded bus lines that purely logical tools cannot detect.
- DALI-2 certification: DALI-2 certified, with a vendor-independent test report for documentation and handover.
- Data logging: DALI data logger from power-on, more than 30,000 DALI bus events.
- Short address management: Directly on the handheld in Expert Mode.
- Test reports: Vendor-independent test report via the Windows App.
- Investigating existing installations: ProbitScan reads the installation without changing its existing configuration.
Manage DALI short addresses directly on site
In Expert Mode, technicians can assign, change or delete DALI short addresses directly on site, including addressing a replacement control gear without a laptop.
Expert Mode on the device
From Firmware V1.5, DALI short addresses can be set, changed and deleted directly on the handheld. Expert Mode is unlocked once from the Windows App. A cog icon on the display shows that the write functions are active.
- Assign a short address to an unaddressed control gear
- Change an existing short address
- Delete a short address
- Resolve address conflicts directly on site
- Address a replaced control gear without a laptop
Note: changing short addresses can affect the assignment in an existing control system. Save a complete scan beforehand and agree the change with the responsible system integrator.

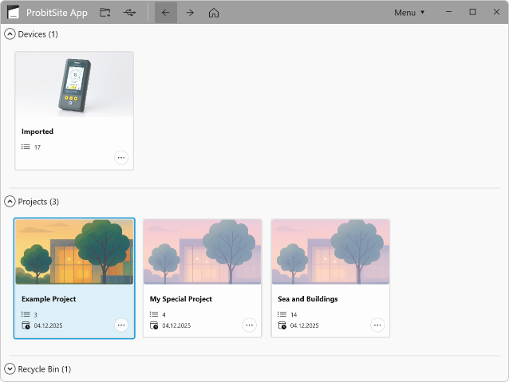

Windows App at your desk
DALI scans can be imported over USB into the ProbitSite Windows App, reviewed and organised by project. The measurement data turns into professional, vendor-independent test reports for documentation and handover.
- Import DALI scans over USB
- Analyse measurements and detected control gear
- Organise scans by project
- Create and print test reports
ProbitSite at a Glance
- Professional DALI measuring device for site work and service
- DALI-2 certified
- Professional DALI diagnostics based on the requirements of IEC 62386
- ProbitScan without changing the existing configuration
- Physical and logical signal analysis
- Integrated DALI bus power supply (190–250 mA) with ProbitConnect
- Expert Mode for DALI short addresses
- DALI data logger for more than 30,000 DALI bus events
- Vendor-independent test reports
- Windows app for evaluation and documentation
- Diagnosis of DALI lines within KNX-DALI systems
Technical Specification
- Display
- 3.5" TFT display, 320 × 480 px, 600 cd/m²
- Integrated DALI bus power supply
- DALI bus power supply: 190–250 mA (ProbitConnect)
- Internal memory
- Internal memory for more than 30,000 DALI bus events
- Battery and runtime
- LiPo battery with approx. 8 hours runtime
- Charging
- 5 V DC, 500 mA via USB-C
- Connections
- 4 mm banana jacks, USB-C
- Dimensions
- approx. 80 × 165 × 27 mm
- Weight
- approx. 300 g
- Compliance
- CE and UKCA compliant
- GTIN
- GTIN-13: 4262466940009
As seen on
Industry magazines and content creators cover ProbitSite
- eFIXXDALI Lighting Fault Finding, Made Easy
- eFIXXDALI fittings not responding? Addressing problem
- Essential InstallPortable DALI Testing Tool For Fast On-Site Diagnostics
- HighlightUmfassende Diagnose von DALI-Systemen
- Der InstallateurDem Fehlerteufel auf der Spur
- i-MagazinDas kompakte Analysetool ProbitSite
- LichtnetAuf Fehlerteufels Spur
Downloads
Downloads & Resources
ProbitSite
ProbitSite App for Windows
V1.2.1- New ProbitSite expert mode support
- Import, view and organize DALI bus scans and logs
- Requires ProbitSite Firmware V1.2 or higher (V1.5 recommended)
ProbitSite Firmware
V1.5- DALI Alliance product database from 2026-02-05
- New Configuration feature: Set and remove short addresses
- Expert mode (enable via ProbitSite App)
- Improved handling of non-critical control device frames
- Scan analysis and storage improvements
ProbitSite Manual (English)
ProbitSite Manual (German)
ProbitSite Datasheet
Drivers
Probit Driver Package (WHQL)
2.12.36.4- Required for USB connection to ProbitSite and other Probit devices
Frequently Asked Questions about ProbitSite
Answers on DALI fault finding, signal quality, DALI addressing and luminaire replacement without a PC, plus further articles and downloads.
ProbitSite FAQ
Signal quality, ProbitScan, Expert Mode, short addresses and luminaire replacement without a PC.
Check DALI signal quality with ProbitSite
Knowledge base article: assess signal quality and narrow down the causes.
Find duplicate DALI short addresses
Knowledge base article: detect address conflicts and resolve them on site.
Related DALI Knowledge Base articles
Request a Quote or Find a Distributor
ProbitSite for your next DALI commissioning
Find electrical faults, communication problems and address conflicts directly on site. Request a quote or find an authorised distribution partner.
- DALI-2 certification, verifiable in the DALI Alliance database
- Recommended retail price: €799 plus VAT
- Manufactured in Berlin
- CE and UKCA compliant
- Windows app for evaluation and test reports
- German product information available
- Authorised distributors worldwide
- Technical support directly from the manufacturer
